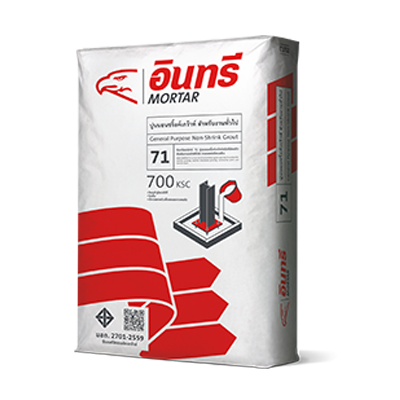

INSEE Mortar 71
General Purpose Non-Shrink Grout
INSEE Mortar 71 contains a shrinkage compensation additive that is used for grouting applications such as concrete structure repairing or cavity, voids of concrete structural, machine baseplates, concrete pillars, steel columns, bridge bearing, precast walls and construction joints.
Applications
It is used for grouting applications such as concrete structure repairing or void, cavity grouting with a suitable thickness of 10 to 150 mm.
- Excellent flowability
- Shrinkage compensation
- No bleeding
- Can be used with pump machine
- Fine filler that can be used to fill 10-mm gap
- Impact load withstand
- Non-toxic and non-corrosive
- Certificated by TIS 2701-2559 Hydraulic cement grout
Technical Properties
| Properties | INSEE Mortar 71 |
|---|---|
| Packaging |
25 Kg
|
| Water Demand at Flowable State |
3.75-4.00 litres / bag
|
| Quantity per 1 cubic metre with water content at 292.5 litres |
78 bags
|
| Bulk Density |
Approx. 1.50 Kg / Litre
|
| Wet Density (at 15% of Water Content) |
Approx. 2.25 Kg / Litre
|
| Water Content (%) | Flow Rate (seconds) | Bleeding (%) | Compressive Strength (kg/cm2) / ASTM C109 | |||
|---|---|---|---|---|---|---|
|
|
JHS 312 (J-14 Funnel)
|
ASTM C 232
|
1 Day
|
3 Days
|
7 Days
|
28 Days
|
|
15%
|
< 12
|
0
|
> 350
|
> 450
|
> 550
|
> 700
|
|
16%
|
< 10
|
0
|
> 300
|
> 400
|
> 500
|
> 650
|
Technical Information

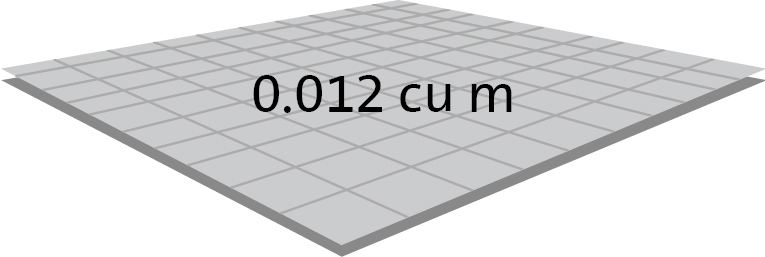

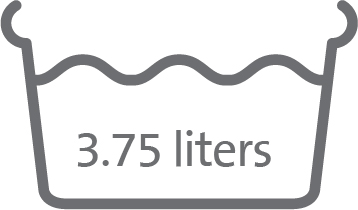

25 Kg (1 bag) per 3.75-4.0 litres of clean water (78 bags can cover the area of 1 cubic metre.)
+
=
- Steel Pole
- Timber Formwork
- INSEE MORTAR 71 General Purpose Non-Shrink Grout
