INSEE SUPERBLOCK

INSEE SUPERBLOCK

INSEE SUPERBLOCK G4/G6

INSEE SUPERBLOCK G4/G6 is produced from cement, sand, lime and expansion agent and cured under high pressure and temperature stream in autoclaves more than 14 hours

INSEE SUPERBLOCK is highly strength and generates millions of calcium silicate hydrate crystalline. The crystalline weaves up to be a strong structure while closed - air bubbles (closed cell) retards heat transfer but not retain the heat. The high pressure stream curing does not only develop the compressive strength but also develop the flexural strength which makes INSEE SUPERBLOCK having high stability and durability.

Product Dimensions

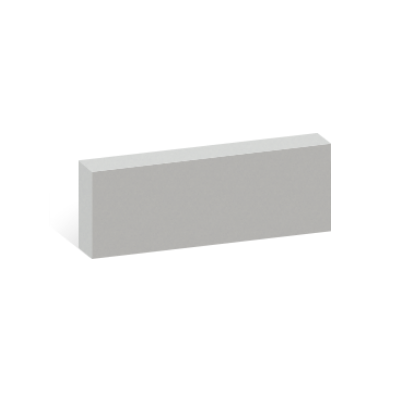

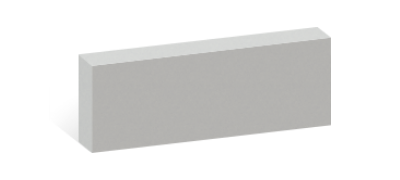

Block

  • Standard height 20, 30, 40 cm.
  • Standard length 60 cm.
  • Standard thickness 5, 7.5, 9, 10 cm.
  • And be increased every 0.5 – 25 cm.

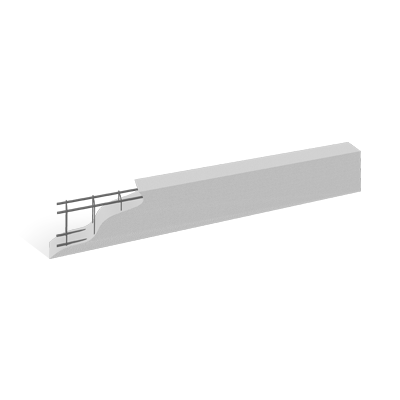

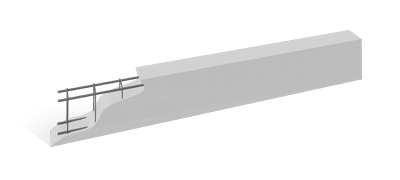

Lintel

  • Standard height 20, 30, 40 cm.
  • Standard length 60 cm. – 5.0 m.
  • Standard thickness 9 / 10 cm.
  • And be increased every 0.5 – 25 cm.

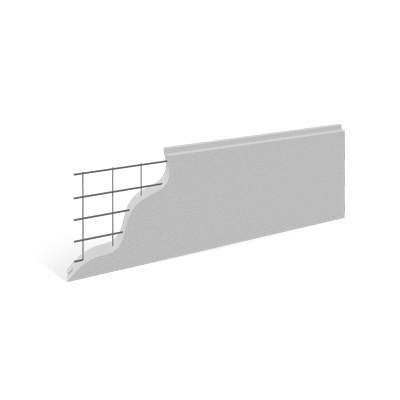

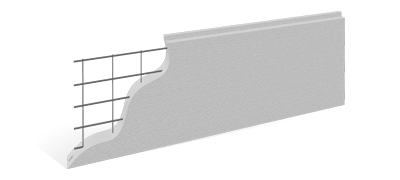

Panel

  • Standard height 20, 30, 40 cm.
  • Standard length 1 – 5.0 m.
  • Standard thickness 9 - 40 cm.
  • And be increased every 0.5 – 25 cm.
Product dimension Usage Quantity
(per sq.m.)
Laying Mortar Usage Quantity
(per sq.m)
G4
20 x 60 x 5 cm. 8.33 pcs. 1.4 - 1.6 kg.
20 x 60 x 7 cm. 8.33 pcs. 1.9 - 2.1 kg.
20 x 60 x 7.5 cm. 8.33 pcs. 2.0 - 2.5 kg.
20 x 60 x 8 cm. 8.33 pcs. 2.2 - 2.6 kg.
20 x 60 x 9 cm. 8.33 pcs. 2.5 - 3.0 kg.
20 x 60 x 10 cm. 8.33 pcs. 2.7 - 3.2 kg.
20 x 60 x 12.5 cm. 8.33 pcs. 3.5 - 4.0 kg.
30 x 60 x 7.5 cm. 5.55 pcs. 1.7 - 2.0 kg.
30 x 60 x 8 cm. 5.55 pcs. 1.8 - 2.1 kg.
30 x 60 x 9 cm. 5.55 pcs. 2.0 - 2.5 kg.
G4 GOLD
20 x 60 x 7 cm. 8.33 pcs. 1.9 - 2.1 kg.
20 x 60 x 7.5 cm. 8.33 pcs. 2.0 - 2.5 kg.
20 x 60 x 10 cm. 8.33 pcs. 2.7 - 3.2 kg.
30 x 60 x 7.5 cm. 5.55 pcs. 1.7 - 2.0 kg.
  • The above prices are only for cash- payable project with purchase order of more than 144 sq.m.
  • This above prices do not include Vat 7%
  • This above prices are only for Bangkok Metropolitan Area and could be changed without prior notices
  • INSEE SUPERBLOCK Lintels will be required in case of no concrete stiffener around door or window frames
Certified by Thailand Industrial Standard (TIS 1505-2541) Class 4

Comparison Table

Size Density
( kg/m 3 )
Compressive Strength
( kg/cm 2 )
Flexural Strength
( kg/cm 2 )
AAC G6 800 75 22.5
AAC G4 700 50 15
AAC G2 500 25 7.5
Non-AAC / CLC 900 35 10.5
Clay Brick 1800 35 10.5
Cement block 1950 30 9

Price List

List INSEE SUPERBLOCK G4
With 7.5 cm. thickness
Clay Brick INSEE SUPERBLOCK G4
Advantage
Price 210 Baht
Size: 20 X 60 X 7.5 cm. (8.33 psc./sqm.)
(only for Bangkok Metropolitan Area)
60 Baht
Usage Quantity 100-130 psc./sq.m.
0.35-0.80 satang/psc.
3 times Working rapidly
for internal wall
Bricklaying Mortar 11 Baht
With 2 – 3 mm. thickness (50 kg./bag)
20 - 25 sq.m.application area (Tile Adhesive)
40 Baht
Bricklaying Cement (wasting time)
And labor
Bricklaying cement
saving and reduce dead
load on structure
Plastering Mortar 70 Baht
Plastering Mortar
(2 sides with 1 -1.5 thickness)
100 Baht
Plastering Cement (wasting time)
With 2 – 2.5 cm. thickness (2 sides)
Plastering cement saving
and reduce dead load on
structure
Labor for Laying and Plastering 180 Baht
(can use general labor) Nationwide Customer Service
200 Baht
No service Team
Nationwide service team
and consultant team for
technical skills
Lintel Not over 9 sq.m. (3x3 m.)
or more than 9.0 cm.
thickness can use
INSEE SUPERBLOCK Lintel to saving time of concrete stiffener
40 Baht/sq.m.
Making lintel every 6 sq.m.
Less working procedure
Rapid construction
Waste of Transportation Actual credit 10 % (5 Baht/sq.m.) To be able to define the actual cost
Total Cost 471 445
Remark: As of Home 200 sq.m, Wall 350 sq.m. and excluding red brick fixing

INSEE SUPERBLOCK Advantage

INSEE SUPERBLOCK

Fire resistance
for longer than 4 hours
Two times lighter than clay
brick which helps to save
the structure
Better sound insulation
(without an echo)
than clay brick
Stronger and possesses
better compressive strength
than clay brick
Can be easily cut and can be rapidly laid since it is 3 times
larger than clay brick
Can be used as the thermal
insulator 6 times better than
clay brick
Heat prevention in summer
6 times better than clay brick
Manufactured according
to TIS standards which
makes each piece has the
precise dimension
Plastered without causing
any crack problems which
helps to reduce plaster
mortar usage up to 6%

Equipment

INSEE Mortar Lightweight Block Plastering Mortar 13
INSEE Mortar Lightweight Block Bricklaying Mortar 23
Trowel; there are 2 sizes - 7.5 cm. and 9 cm.
Sandpaper Trowel
Hand saw
Mortar mixer
Brick Trowel
Rubber hammer
Electric drill machine
Safety Helmet

How to INSEE SUPERBLOCK

Procedure for bricklaying

1

  • Mix INSEE Mortar Lightweight Block Bricklaying Mortar 23 with recommendation by mortar mixer and use electric drill machine to blend the material to be creamy
2

  • Use brick trowel to apply material onto the INSEE SUPERBLOCK row
3

  • Slip all 4 side of the INSEE SUPERBLOCK row before laying the next one by laying overlapping with each other at least 10 -15 cm.
4

  • Knock by the rubber hammer to keep INSEE SUPERBLOCK aligned and level in order to strong stickiness, to spread mortar to all surface
Procedure for plastering

5

  • Mix to make the button onto the wall before plastering for a couple days with maximum 1.5 cm. thickness
6

  • Mix INSEE Mortar Lightweight Block Plastering Mortar 13 with recommendation by mortar mixer or mix in the bucket
7

  • Moisten the wall surface appropriately before plastering IMM Lightweight Block Plastering Mortar 13
  • In case of plastering over 15 cm. or 15 mm. need to make a twice plastering which the first layer should be left for 1 night and then the second layer can be applied
8

  • Use screed trowel and then brush and use a sponge to smoothen the wall surface
